HI-QuadCore 2.0 F

Description and applications

Cold storage panel with metal faces and rigid QuadCore® insulating core, which provides one of the best thermal insulation on the market, high level of fire protection and great durability.
Certified panel for use both indoors and outdoors, designed for applications that require a high degree of insulation: food industry, cold roomms, laboratories, clean rooms, etc.
The fire performance of the entire range of HI-QuadCore
2.0 F panels is certified by FM Approvals under standard FM 4880, FM 4881 and FM 4882.

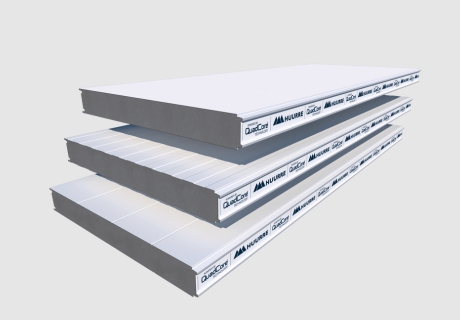

copia de plantilla foto dual

Fire behaviour

Fire reaction classification: EUROCLASE B-s1, d0

Technical characteristics

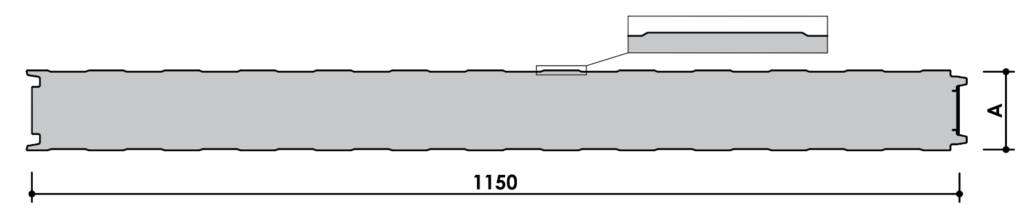

huurre hi quadcore f seccion cotas 1024x220
  • Useful width: 1.150 mm (1.120 mm, check availability)
  • Manufacturing lenght: Standard 2,0 a 13,5 m | Special 13,5 a 18 m (special transport)
  • Type of joint: FJ – FS
  • Declared thermal conductivity: 0,019 W/mK (considering an aged core)
  • Total thickness (A): 60 | 80 | 100 | 125 | 150 | 175 | 200 | 230 (mm)

High thermal efficiency

The QuadCore® insulating core has excellent thermal performance, with an aged thermal conductivity of just 0.019W/mK..

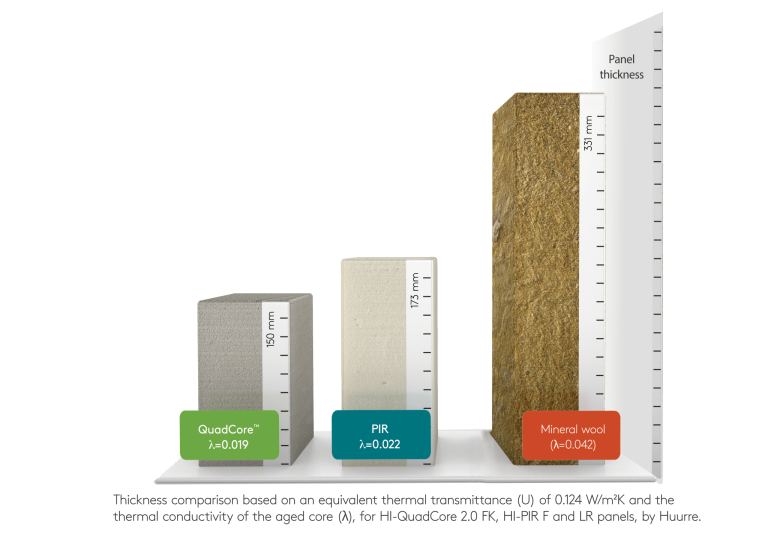

huurre quadcore grafico en 2048x1431
