HI-QuadCore 2.0 XT Dual

Description and application

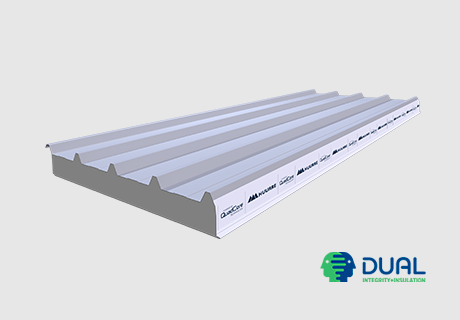

Sandwich panel for roofs with QuadCore 2.0 rigid insulating core and external faces of structural steel profiled sheet.
Lightweight enclosure with high insulating power, its interlocking joints and overlapping of the top sheet guarantee a high watertightness of the enclosure.
Available in various steel thicknesses, coatings and colours.
Thermally efficient roofs, of high aesthetic value and quick execution for industrial, commercial, residential, agricultural and public buildings. The range offers fire resistance from REI 30 to REI 60, depending on thickness.

Downloads

Click to view all documentation for download

Fire behaviour

Fire resistance REI 30 | REI 45 | REI 60: Depending on the thickness of the panel (see technical data sheet)

Fire reaction classification: EUROCLASE B-s1,d0

Technical characteristics

Useful width: 1,000 mm
Manufacturing length: Standard 2.0 to 13.5 m | Special 13.5 to 16 m (special transport)
Type of joint: XT
Declared thermal conductivity: 0,019 W/mK (in view of the ageing core)
Total thickness (A): 80 | 100 | 120 (mm)

Advantages

DUAL integrity + insulation.
