HI-XT

Description and application

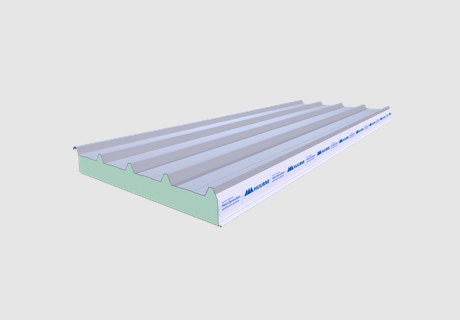

Sandwich panel for roofs with rigid insulating core and exterior faces of profiled structural steel sheets. Lightweight enclosure with high insulating properties, its tongue-and-groove sealed joints guarantee full enclosure leak-tightness. Available in various steel thicknesses, coatings and colours. Thermally efficient roofs, with high aesthetic value and quick execution for industrial, commercial, agricultural sector buildings and public centres.

hi xt

Fire behaviour

Fire reaction classification : EUROCLASS B-s1,d0

Classified as Broof (t1, t2, t3): which classifies construction products with respect to non-propagation and behavior against an external fire.

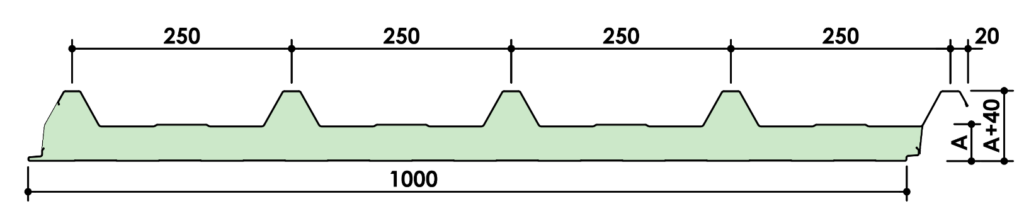

Technical characteristics

characteristics
  • Useful width : 1,000 mm
  • Manufacturing length : 2.0 to 13.5 m | 13.5 to 16.0 m (requires special transportation)
  • Declared thermal conductivity : 0.022 W/mK (considering aged core)
  • Insulating core thickness (A) : 30 | 40 | 50 | 60 | 80 | 100 | 120 (mm)

Close-up of joint

close up of joint
